Description:
DC power distribution fuses for use with Telpower 15100, 15200, TP158HC and TPHCS disconnect systems. For replacement of Cooper Bussmann UBO fuses a TPL-TA adapter kit is necessary.

Ratings:
Volts: 170Vdc
Amps: 70-800A
IR: 100kA

Agency Information: CE, UL Recognized Guide JFHR2, File E56412 Bellcore.

General Information:
• Designed for DC power distribution systems.
• Recognized branch circuit protection.
• Current-limiting capability.
• Complete system coordination capability.
• Energy savings with low watts loss, low operating temperatures, and minimum I2t levels.
• Use with Telpower 15100, 15200, TPHCS and TP158HC disconnect systems.
• For replacement of Bussmann’s UBO fuses, a TPL-TA adapter kit is necessary.

Features and Benefits
• Current-limiting capability designed for DC power distribution systems
• Recognized branch circuit protection
• Complete system coordination capability
• Energy savings with low watts loss, low operating temperatures, and minimum I2t levels

Typical Applications
• Telecommunications power circuit protection

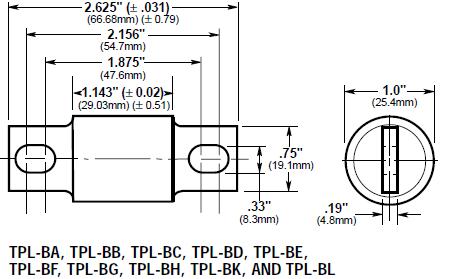

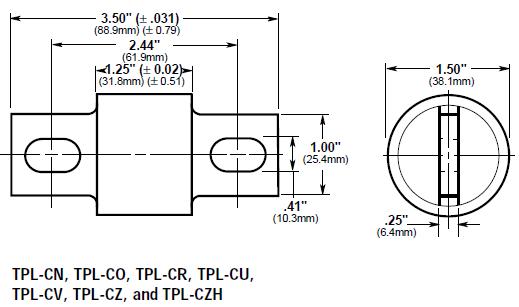

Dimensions - in (mm)






Catalog Numbers, Carton Quantity and Weight

Catalog Number	Ampere Rating	Carton Qty.	Weight (per carton)
			Lbs.	Kg.
TPL-BA	70	5	1.6	0.73
TPL-BB	80	5	1.6	0.73
TPL-BC	90	5	1.6	0.73
TPL-BD	100	5	1.6	0.73
TPL-BE	125	5	1.6	0.73
TPL-BF	150	5	1.6	0.73
TPL-BG	175	5	1.6	0.73
TPL-BH	200	5	1.6	0.73
TPL-BK	225	5	1.6	0.73
TPL-BL	250	5	1.6	0.73
TPL-CN	300	1	0.9	0.4
TPL-CO	350	1	0.9	0.4
TPL-CR	400	1	0.9	0.4
TPL-CU	450	1	0.9	0.4
TPL-CV	500	1	0.9	0.4
TPL-CZ	600	1	0.9	0.4
TPL-CZH	800	1	0.9	0.4

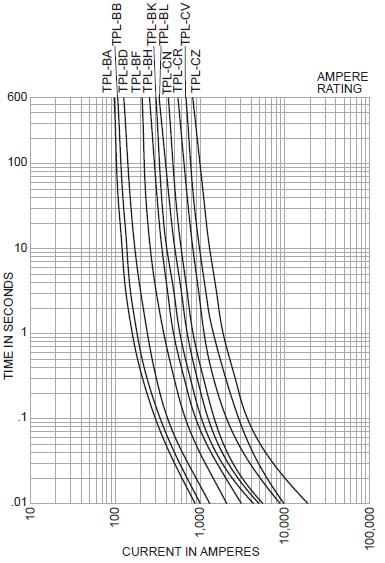

Time-Current Characteristic Curves - Average Melt
