TPS Seires 170Vdc Telpower® Fuses


Description:
DC power distribution non-indicating fuses specifically designed to meet the unique needs of DC power distribution systems. For use with Cooper Bussmann® fused disconnect switch 15800.

Ratings:
Volts: 170Vdc
Amps: 1-70A.
IR: 100kA
Agency Information: CE, UL Recognized, Guide JFHR2, File E56412.

General Information:
• TELPOWER® fuses bring modern power fuse design to the telecommunications industry.
• TELPOWER® fuse line is the first to be specifically designed to meet the unique needs of DC Power Distribution Systems.
• The U.L. Recognized ratings of 170Vdc and 100,000A interrupting rating along with the fuse’s currentlimiting capability make this fuse ideal for overcurrent protection on existing DC Distribution Systems.
• A unique BLUE label is used on all TELPOWER® fuses to designate their DC capability.
• Circuit board applications available.
• Silver-plated brass ferrules.
• Glass melamine tube.
• For use with Bussmann Fused Disconnect Switch 15800.
• Spare Fuseholder: TPSFH-AS

Features/Benefits
• The UL Recognized ratings and current-limiting capability make this fuse ideal for cable protection on existing DC power distribution systems
• A unique blue label is used on all Telpower fuses to designate their DC capability
• Printed circuit board variations available

Typical Applications
• Telecommunications DC power circuit protection
• Applications requiring printed circuit board mounting

Custom Designs
• Printed circuit board variations available.

Catalog Numbers (Amps)
TPS-1 TPS-6 TPS-25L TPS-50
TPS-1L TPS-6L TPS-25V TPS-50L
TPS-1LB TPS-10 TPS-30 TPS-50V
TPS-2 TPS-10L TPS-30L TPS-60
TPS-2L TPS-15 TPS-35 TPS-60L
TPS-3 TPS-15L TPS-35L TPS-70
TPS-3L TPS-20 TPS-40 TPS-70L
TPS-5 TPS-20L TPS-40L TPS-70LB
TPS-5L TPS-25 TPS-40V


Dimensional Data
TPS-(AMP)

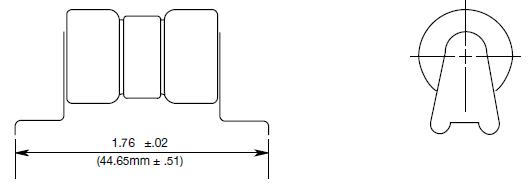

TPS-(AMP)L

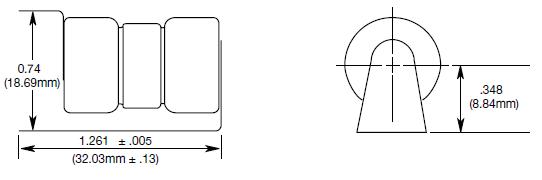

TPS-(AMP)V

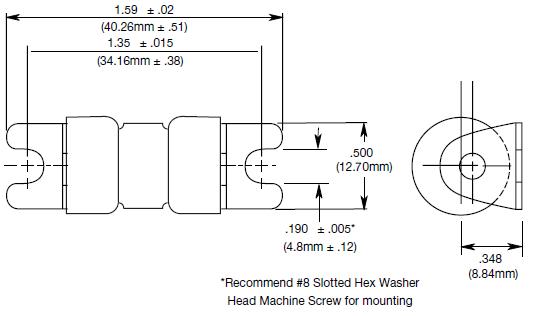

TPS-(AMP)LB

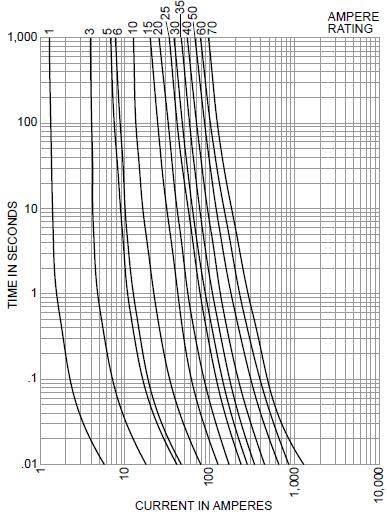

Time-Current Characteristic Curve
----------------------------------
