FWJ 1000V Ferrule High speed fuses - Bussmann (EATON / Formerly Cooper) Authorized Distributor

Description:
Ferrule style high speed fuses.

Ratings:

Volts: 1000Vac/800Vdc

Amps: 20-30A

IR: 25kA RMS Sym. 20kA@ 800Vdc

Agency Information:
CE, UL Recognized

Electrical Characteristics

Total Clearing I2t

The total clearing I2t at rated voltage and at power factor of 15% are given in the electrical characteristics. For other voltages, the clearing I2t is found by multiplying by correction factor, K, given as a function of applied working voltage, Eg, (rms).

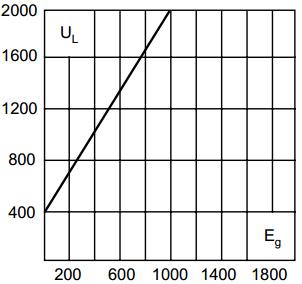

Arc Voltage

This curve gives the peak arc voltage, UL, which may appear across the fuse during its operation as a function of the applied working voltage, Eg, (rms) at a power factor of 15%.

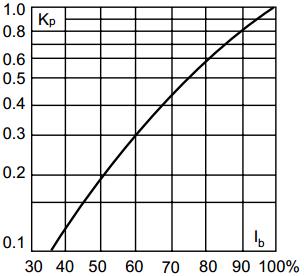

Power Losses

Watts loss at rated current is given in the electrical characteristics. The curve allows the calculation of the power losses at load currents lower than the rated current. The correction factor, Kp, is given as a function of the RMS load current, Ib, in % of the rated current.

Features and Benefits

• Excellent cycling capability and DC performance

• Low arc voltage and low energy let-through (I2t)

• Low watts loss in a compact size

• Used with finger-safe holders/blocks

Typical Applications

• DC common bus

• DC drives

• Power converters/rectifiers

• Reduced voltage starters

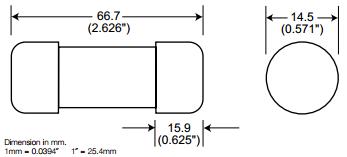

Dimensions - mm (inches)

Catalog Numbers

Electrical Characteristics				Ordering Information
Size	Rated Current RMS-Amps	I2t (A2S)		Watts Loss	Part Number	Carton Qty.	Carton Weight (kg)
		Pre-arc	Clearing at 1000V
14 x 67mm (9/16")	20 25 30	25 33 52	220 350 450	9 11 14	FWJ-20A14F FWJ-25A14F FWJ-30A14F	10	0.3

• Watts loss provided at rated current.

Fuseclips:

• Catalog Number: 5591

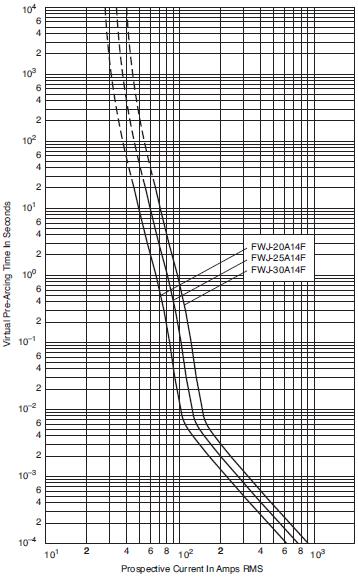

Time-Current Curve

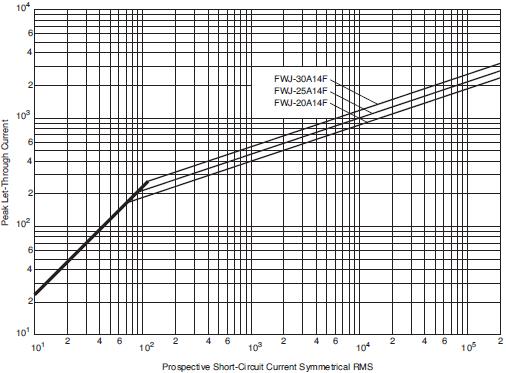

Peak Let-Through Curve
