LMMT

Description: BS 88 style stud-mount high speed semiconductor fuses.

Ratings:
Volts: 240Vac/150Vdc
Amps: 400-900A
IR: 200kA RMS Sym.
Agency Information: CE, Designed and tested to: BS 88 Part 4, IEC 269 Part 4, UL Recognized. All fuses above have been tested at 318Vac. Consult Cooper Bussmann or Bolfmax for specific UL Recognition status.

Electrical Characteristics
Total Clearing I2t

The total clearing I2t at rated voltage and at power factor of 15% are given in the electrical characteristics. For other voltages, the clearing I2t is found by multiplying by correction factor, K, given as a function of applied working voltage, Eg, (rms).

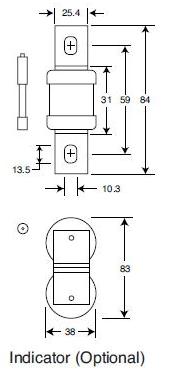

Dimensions (mm)


Arc Voltage

This curve gives the peak arc voltage, UL, which may appear across the fuse during its operation as a function of the applied working voltage, Eg, (rms) at a power factor
of 15%.

Power Losses

Watts loss at rated current is given in the electrical characteristics. The curve allows the calculation of the power losses at load currents lower than the rated current. The correction factor, Kp, is given as a function of the RMS load current, Ib, in % of the rated current.

Catalog Numbers

Catalog Numbers	Type	Rated Current RMS-Amps	I2t(A2 Sec)			Watts Loss
			Pre-arc	Clearing
				at 120V	at 240V
400LMMT	LMMT	400	6000	35000	80000	60
500LMMT		500	14000	80000	170000	64
630LMMT		630	24000	150000	300000	75
710LMMT		710	32000	200000	460000	77
800LMMT		800	52000	300000	600000	82
900LMMT		900	75000	400000	800000	97

• Watts loss provided at rated current.

Features and Benefits
• Excellent cycling capability
• Excellent DC performance
• Low arc voltage and low energy let-through (I2t)

Typical Applications
• DC common bus
• AC and DC drives
• Power converters/rectifiers
• Reduced voltage starters

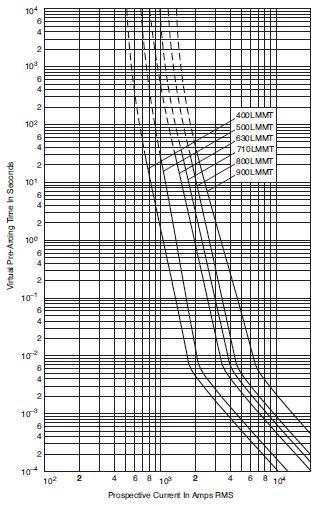

Time-Current Curve

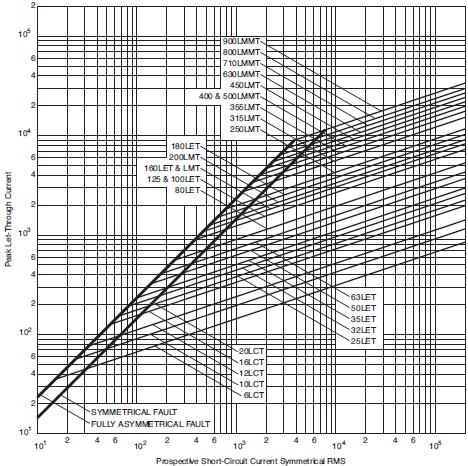

Peak Let-Through Curve
