LMT

Description: BS 88 style stud-mount high speed semiconductor fuses.

Ratings:
Volts: 240Vac/150Vdc
Amps: 160-450A
IR: 200kA RMS Sym.
Agency Information: CE, Designed and tested to: BS 88 Part 4, IEC 269 Part 4, UL Recognized. All fuses above have been tested at 318Vac. Consult Cooper Bussmann for specific UL Recognition status.

Electrical Characteristics
Total Clearing I2t

The total clearing I2t at rated voltage and at power factor of 15% are given in the electrical characteristics. For other voltages, the clearing I2t is found by multiplying by correction factor, K, given as a function of applied working voltage, Eg, (rms).

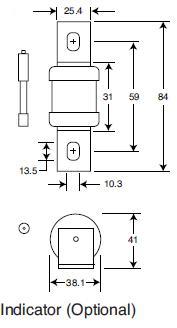

Dimensions (mm)


Arc Voltage

This curve gives the peak arc voltage, UL, which may appear across the fuse during its operation as a function of the applied working voltage, Eg, (rms) at a power factor
of 15%.

Power Losses

Watts loss at rated current is given in the electrical characteristics. The curve allows the calculation of the power losses at load currents lower than the rated current. The correction factor, Kp, is given as a function of the RMS load current, Ib, in % of the rated current.

Catalog Numbers

Catalog Numbers	Type	Rated Current RMS-Amps	I2t(A2 Sec)			Watts Loss
			Pre-arc	Clearing
				at 120V	at 240V
160LMT	LMT	160	1100	7000	16000	17
200LMT		200	1500	10000	20000	28
250LMT		250	3200	20000	40000	28
315LMT		315	6000	35000	75000	35
355LMT		355	8000	50000	100000	35
400LMT		400	14000	70000	160000	40
450LMT		450	18000	100000	220000	42

• Watts loss provided at rated current.

Features and Benefits
• Excellent cycling capability
• Excellent DC performance
• Low arc voltage and low energy let-through (I2t)

Typical Applications
• DC common bus
• AC and DC drives
• Power converters/rectifiers
• Reduced voltage starters

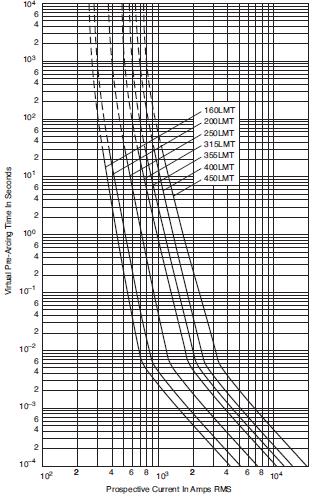

Time-Current Curve

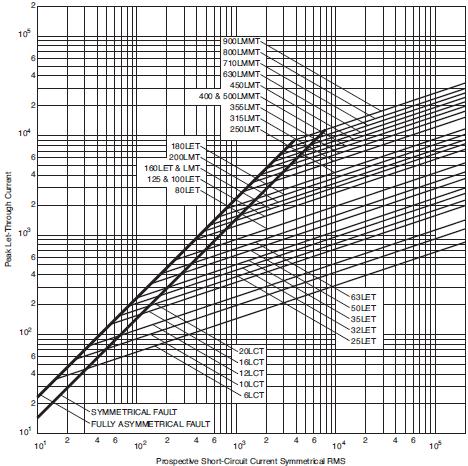

Peak Let-Through Curve
