NDN Series Rail Mount Terminal Blocks


Specifications
Description: High-density, snap-on 35mm DIN rail compatible rail mount terminal blocks.
Construction: Unique, impact resistant, one-piece thermoplastic moldings. Heat treated stainless steel collars (to secure wires). Tin-plated copper alloy terminals. Zinc-plated steel screws.
Circuits Per Foot: Up to 48 circuits per foot.
Agency Information: CE, UL E62622; CSA LR15364. Flammability Rating: UL 94V2



NDNV4-__ __(color)
Specifications
Description: Rail mount terminal block.
Rating: NDNV4 30A, 600V
Center Spacing: 0.25" (6.35mm)
Number of Poles: 4
Circuits Per Foot: 48
Circuit Jumper: JN4, 4 circuits
Wire Range: AWG #10-22 CU
Screw Size: #6-32
Mounting Options: 35mm DIN rail, C-rail
Marking Tape: MTC6
Torque Rating: 18 lb-in
Operating Temperature: 105°C

Catalog
Numbers        Colors
NDNV4-WH    White (Standard)
NDNV4-BK      Black
NDNV4-YE      Yellow




NDN3-__ __(color)
Specifications
Description: Rail mount terminal block.
Rating: 30A - field wiring: 40A - factory wiring 600V
Center Spacing: 0.300" (7.62mm)
Number of Poles: 3
Circuits Per Foot: 38
Circuit Jumper: JNDN3, 2 circuits
Wire Range: AWG #10-22 CU
Screw Size: #6-32
Mounting Options: 35mm DIN rail, C-rail
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C

Catalog
Numbers      Colors
NDN3-WH    White (Standard)
NDN3-BK      Black
NDN3-BL      Blue
NDN3-RE     Red
NDN3-YE      Yellow

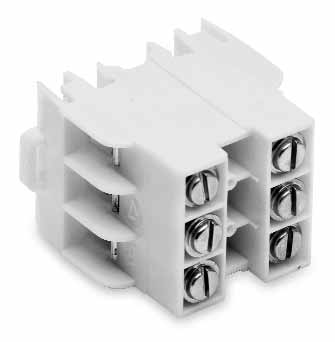

NDN63-__ __(color)
Specifications
Description: Rail mount terminal block.
Rating: 65A, 600V
Center Spacing: 0.375" (9.52mm)
Number of Poles: 3
Circuits Per Foot: 30
Circuit Jumper: JN3, 2 circuits
Wire Range: AWG #6-18 CU
Screw Size: #10-32
Mounting Options: 35mm DIN rail, C-rail
Marking Tape: MT12-1-2
Torque Rating: 35 lb-in
Operating Temperature: 105°C

Catalog
Numbers         Colors
NDN63-WH     White (Standard)
NDN63-BK       Black
NDN63-YE       Yellow




NDN1-WH
Specifications
Description: Rail mount terminal block.
Rating: 90A, 600V
Center Spacing: 0.635" (16.13mm)
Number of Poles: 1
Circuits Per Foot: 18
Wire Range: AWG #2-18 Cu
Screw Size: #1/4-28
Mounting Options: 35mm DIN rail, C-rail
* Dove-tail option is available for mounting side-by-side.
Order part no. NDN1A-WH
Marking Tape: MT12-1-2
Torque Rating: 32 lb-in
Operating Temperature: 105°C

Catalog
Number         Color
NDN1-WH     White




NDN111-__ __(color)
Specifications
Description: Rail mount terminal block.
Rating: 90A, 600V
Center Spacing: 0.635" (16.13mm)
Number of Poles: 3
Circuits Per Foot: 18
Circuit Jumper: JN1, 2 circuits
Wire Range: AWG #2-18 Cu
Screw Size: #1/4-28
Mounting Options: 35mm DIN rail, C-rail, Base Mount
* Dove-tail option is available for mounting side-by-side.
Order part no. NDN111-A
Marking Tape: MT12-1-2
Torque Rating: 32 lb-in
Operating Temperature: 105°C

Catalog
Numbers         Colors
NDN111-WH   White (Standard)
NDN111-BK     Black
NDN111-BL      Blue
NDN111-RE     Red
NDN111-YE      Yellow
NDN111A-WH  White
NDN111A-BK    Black (Standard)
NDN111A-YE    Yellow




NDN Series Terminal Block Accessories


NDNA
35mm DIN Rail Aluminum
NDNA 100 1 meter
NDNA 200 2 meters


NDNAS 35mm DIN Rail End Stop



NFTA C-Rail
Aluminum
Lengths to 72"



NRA C-Rail
Low Profile
No Flange
Aluminum
Lengths to 37-1/2"



SOA72
72" Long
Stand-Off Channel For C-Rail



MARKING TAPE


JUMPERS

----------------------------------
