Description:
Depluggable rail mount sectional terminal block.

Rating: 70A, 600V

Center Spacing: 0.625" (15.88mm)
Number of Poles: 1-3

Part Numbers:
• PLU1 (1-pole)
• PLU11 (2-pole)
• PLU111 (3-pole)

Circuits Per Foot: 19
Circuit Jumper: JN1, 2 circuits
Wire Range: AWG #4-18 Cu
Screw Size: #1/4-28
Mounting Options: C-rail, Stackable
Marking Tape: MT12-1-2
Torque Rating: 32 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364.

Catalog Number   Poles   Color
PLU1-WH                   1       White
PLU11-WH                 2       White
PLU111-WH               3       White

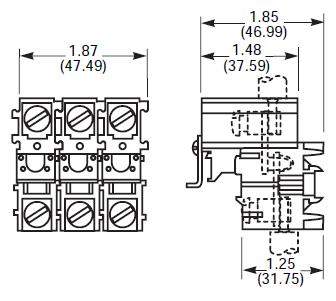

Dimensions - in (mm)
