PSU1-WH Sectional Terminal Blocks


Description:
Depluggable rail mount sectional terminal block.

Rating: 45A*, 600V
*45A rating achieved with ring terminal crimped to wire.
Center Spacing: 0.625" (15.88 mm)

Number of Poles: 1-3

Part Number:
• PSU1 (1-pole)
• PSU11 (2-pole)
• PSU111 (3-pole)

Circuits Per Foot: 19
Wire Range: For use with crimp on connectors only.
Screw Size: #10-32
Mounting Options: C-rail, Stackable
Marking Tape: MT12-1-2
Torque Rating: 24 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364

Catalog Numbers Poles Color
PSU1-WH                  1       White
PSU11-WH                2      White
PSU111-WH              3      White

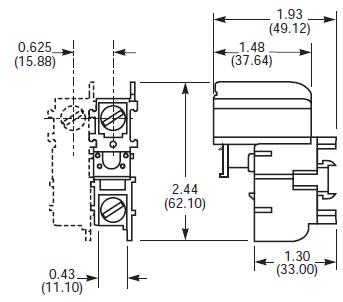

Dimensions - in (mm)
----------------------------------
