Other Rail Mount Terminal Blocks


Description: Rail mount terminal block.

N512-BK

Rating: 5A, 600V; 20A, 300V
Center Spacing: 0.197" (5.00mm)
Number of Poles: 12
Circuits Per Foot: 60
Circuit Jumper: JN512, 12 circuits
Wire Range: AWG #12-22 Cu
Screw Size: #4-48
Mounting Options: C-rail, 15mm DIN rail
Marking Tape: AT512
Torque Rating: 12 lb-in
Operating Temperature: 105°C
Agency Information: CSA File 15364.

Catalog Number     Color
N512-BK                   Black

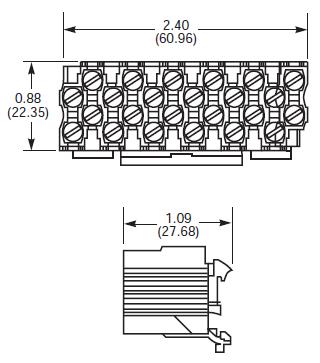

Dimensions - in (mm)


NFT2-__ __(color)

Rating: 40A, 600V; 55A Factory Wired
Center Spacing: 0.281" (7.13mm)
Number of Poles: 2
Circuits Per Foot: 38
Circuit Jumper: JN2, 2 circuits
Wire Range: AWG #8-22 Cu
Screw Size: #8-32
Mounting Options: C-rail
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364.

Catalog
Numbers  Colors
NFT2-WH  White
NFT2-BK   Black
NFT2-BL    Blue
NFT2-RE   Red

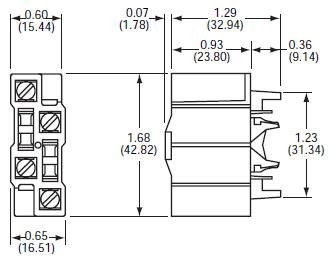

Dimensions - in (mm)




NFT3-__ __(color)

Rating: 40A, 600V 55A Factory Wired
Center Spacing: 0.390" (9.91 mm)
Number of Poles: 3
Circuits Per Foot: 28
Circuit Jumper: JN3, 2 circuits
Wire Range: AWG #8-22 Cu
Screw Size: #8-32
Mounting Options: C-rail
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 47235.

Catalog
Numbers   Colors
NFT3-WH   White (Standard)
NFT3-BK     Black
NFT3-BL     Blue
NFT3-RE     Red
NFT3-YE     Yellow

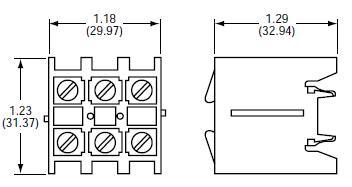

Dimensions - in (mm)




NC3-__ __(color)

Rating: 175A, 600V
Center Spacing: 1.06" (26.92mm)
Number of Poles: 3
Circuits Per Foot: 11
Wire Range: 2/0-#14 Cu/Al
Screw Size: 5/16-24
Mounting Options: C-rail, Base Mount
Marking Tape: MT12-1-2
Torque Rating: 45 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364.

Catalog
Number   Color
NC3-WH  White
NC3-BK    Black

Dimensions - in (mm)




NSE3-WH

Rating: 115A, 600V
Center Spacing: 1.06" (26.92mm)
Number of Poles: 3
Circuits Per Foot: 11
Circuit Jumper: JNSE3, 2 circuits
Wire Range: For use with wire
crimped to ring terminal
Screw Size: #1/4-28
Mounting Options: C-rail, Base Mount
Marking Tape: MT12-1-2
Torque Rating: 32 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364.

Catalog
Number      Color
NSE3-WH  White

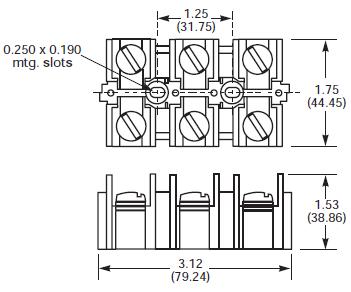

Dimensions - in (mm)




NSS3-__ __(color)

Rating: 30A, 600V
Center Spacing: 0.385" (9.77mm)
Number of Poles: 3
Circuits Per Foot: 28
Circuit Jumper: JNSS3, 2 circuits
Wire Range: For use with wire crimped to ring terminal
Screw Size: #6-32
Mounting Options: C-rail
Marking Tape: MT12-1-2
Torque Rating: 12 lb-in
Operating Temperature: 105°C
Agency Information: UL File E62622, CSA File 15364.

Catalog
Number      Color
NSS3-WH   White
NSS3-BK    Black

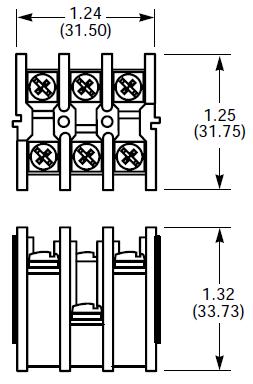

Dimensions - in (mm)

----------------------------------
