Description:
Double row terminal blocks.

Rating: 30A, 300V*

Center Spacing: 0.375” or 3/8” (9.52mm)

Wire Range: #14 - 22 AWG Cu

Screw Size: #6-32 philslot screws

Torque Rating: 9 lb-in.

Distance Between Barriers: 0.30” (7.62mm)

Mounting: #6 screws

Operating Temperature: 130°C (266°F) max., -40°C (-40°F) min.

Materials: Molded base: Black, UL rated 94V0 thermoplastic

Terminal plating: Tin over brass; Screws: Zinc-plated steel

Breakdown Voltage: 3600V

Agency Information: UL File E62622/CSA File 47235; IEC Compliance; CE Certified

* Max rating shown; some options may be rated lower, consult Cooper Bussmann.

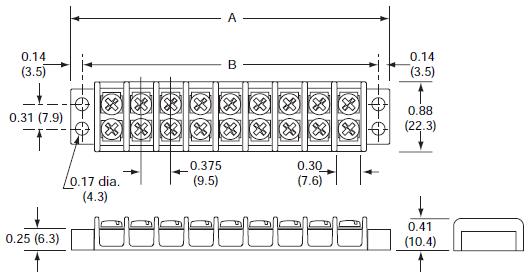

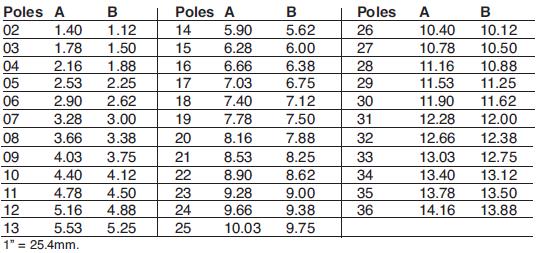

Dimensions - in

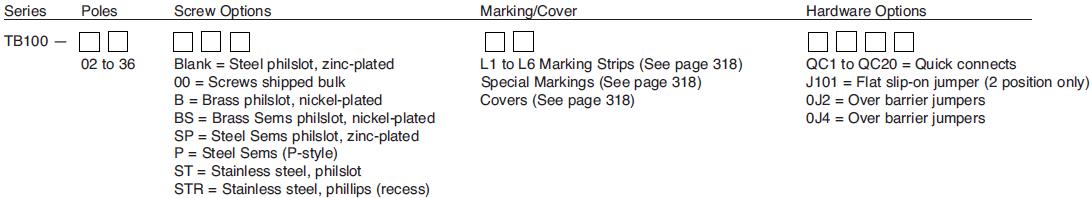

Catalog Number Build-A-Code

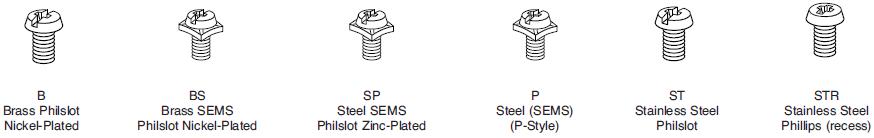

Screw Options

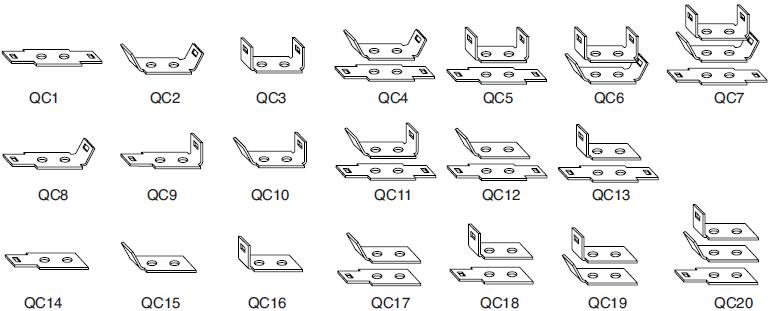

Hardware Options

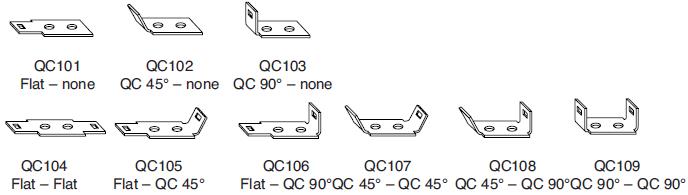

Quick Connects – Assembled: Terminals 0.187” x 0.020”. Maximum current rating 13 amps.

Quick Connects – Bulk: minimum order per part number – 100 pieces.

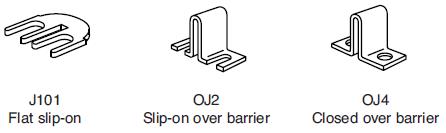

Jumpers – Bulk: minimum order per part number – 100 pieces. Contact Cooper Bussmann for jumper assembly.
