TB400 Series Double Row Terminal Blocks


Description:
Double row terminal blocks.

Ratings:
Volts: 600V
Amps: 75A

Center Spacing: 0.687” or 11/16” (17.45mm)
Wire Range: #6-14 AWG Cu
Screw Size: #10-32 philslot screws
Torque Rating: 20 lb-in.
Distance Between Barriers: 0.56” (14.3mm)
Mounting: #10 screws

Operating Temperature: 130°C (266°F) max., -40°C (-40°F) min.

Material:
Molded base: Black, UL rated 94V0 thermoplastic
Terminal plating: Tin over brass; Screws: zinc-plated steel

Breakdown Voltage: 7500V

Agency Information: UL File E62622, CSA File 47235; IEC Compliance; CE Certified

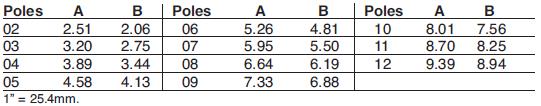

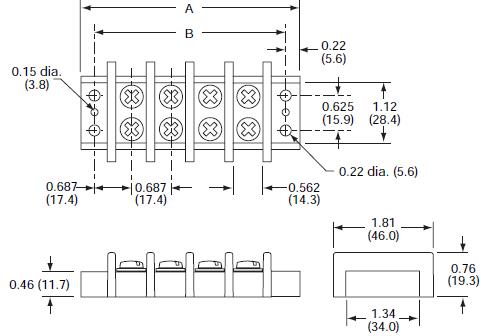

Dimensions - in

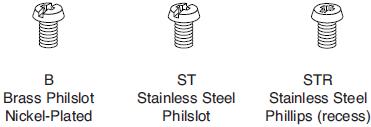

Screw Options


Hardware Options

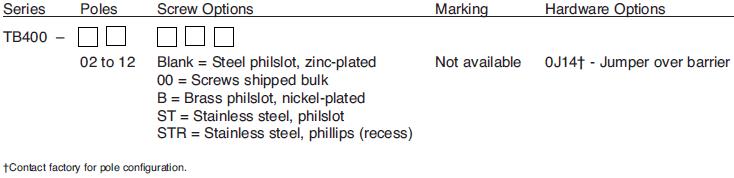

Catalog Number Build-A-Code


----------------------------------
