For a Complete Assembly, Please Select:
SWITCH
![]() |
Amp Rating | Fuse Class | No. of Poles | SCCR | Max Horsepower Rating | Wire Size | Wire Type | Part Number | |||||
1-Phase 220/ 240Vac | 3-Phase | DC* | |||||||||||
220/ 240Vac | 440/ 480Vac | 600 Vac | 125 Vdc | 250 Vdc | |||||||||
30 | J | 2 | 200kA | 3 | - | 3 | 5 |
#14-10 Sol #14-6 Str |
75°C Cu | RDF30J-2 | |||
3 | - | 7.5 | 15 | 20 | RDF30J-3 | ||||||||
4 | RDF30J-4 | ||||||||||||
* DC Ratings use two poles in series. |
HANDLE
![]() |
Direct Mount Handle -mounts directly to switch, no shaft required | |||||
For Switch Part Number | Color | Test Function | Padlockable | Part Number | ||
All Switches | Black | Y | Y -On Switch | DIR-07 | ||
OR | ||||||
![]() OR ![]() + ![]() |
External Front Operated Pistol Handles - shaft required | |||||
NEMA Type | Color | Test Function | Padlockable | Defeatable | Part Number | |
1, 3R, 12 | Black | N | Y | H12-05B | ||
Red/Yellow | H12-05R | |||||
1, 3R, 4, 4X, 12 | Black | H4X-05B | ||||
Red/Yellow | H4X-05R | |||||
Black | Y | H4X-05TB | ||||
Red/Yellow | H4X-05TR | |||||
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles - shaft required | ||||||
NEMA Type | Color | Test Function | Padlockable | Defeatable | Part Number | |
1, 3R, 4, 4X, 12 | Black | N | Y | H4X-05BHD | ||
Red/Yellow | H4X-05RHD | |||||
External Right Side Operated Pistol Handles - shaft required | ||||||
NEMA Type | Color | Test Function | Padlockable | Defeatable | Part Number | |
1, 3R, 4, 4X, 12 | Black | N | Y | N/A | H4X-05SB | |
Red/Yellow | H4X-05SR | |||||
Shafts for Pistol Handles | ||||||
Length in (mm) | Mounting Depth (X) in (mm) | Part Number | ||||
7.9(200) | 5.3-9.06(135-230) | SH5-200 | ||||
12.6(320) | 5.3-13.78(135-350) | SH5-320 | ||||
15.7(400) | 5.3-16.93(135-430) | SH5-400 | ||||
OR | ||||||
(1)![]() (2) ![]() (3) ![]() (4) ![]() |
Flange Handle(1) - requires shaft operated mechanism or cable operated mechanism + cable | |||||
NEMA Type | Flange Style | Test Function | Padlockable | Defeatable | Part Number | |
1, 3R, 4, 12 | Standard | N | Y | FLH1 | ||
1, 3R, 4, 4X, 12 | Chrome Plated | FLH2 | ||||
Shaft Operated Flange Mechanism(2) - includes shaft | ||||||
For Enclosure Depth -in (mm) | Part Number | |||||
6~24 (152~613) | FLRM | |||||
Cable Operated Flange Mechanism and Cable - must select Mechanism(3) and Cable(4) | ||||||
Item / Length | Part Number | |||||
Cable Mechanism | FLCM | |||||
36” (900mm) Cable | FLC36 | |||||
60” (1500mm) Cable | FLC60 | |||||
120” (3000mm) Cable | FLC120 | |||||
OR | ||||||
![]() |
NFPA Through the Door Handle Kit - to be used with selector handle or front pistol handle | |||||
Color | Test Function | Padlockable | Defeatable | Part Number | ||
Red | N | Y | N | H79-2 |
Accesories
![]() |
Auxillary Contacts | |||||
Contact Type | Number of Contacts | Continuous Amp Rating | Voltage Rating | Max Number of Aux Contacts per Switch | Part Number | |
NO | 1 | 10A | 600Vac | 4 | BAC05 | |
NC | BAC06 |

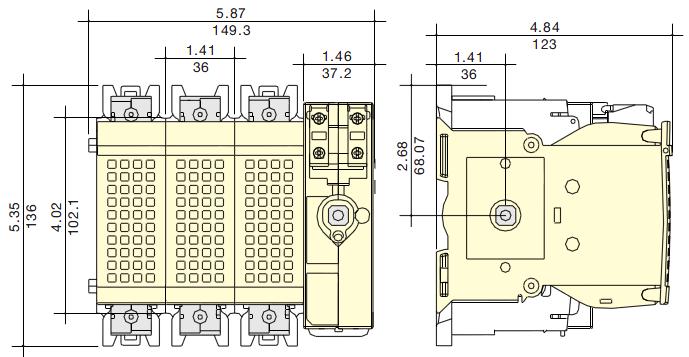

Dimensions – in (mm)
![](/uploads/spec-pics/201306/RDF30J-2-3-4-Cooper-Bussmann-Dimensions.jpg)
Direct Mount Handle
![](/uploads/spec-pics/201306/DIR-07-Direct-Mount-Handle-Dimensions.jpg)

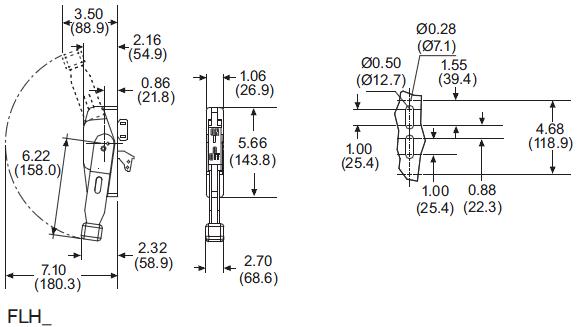

Flange Handle
![](/uploads/spec-pics/201306/FLH-Flange-Handle-Dimensions.jpg)
External Front & Right Side Pistol Handle
![](/uploads/spec-pics/201306/H4X-H12-05-Dimensions.jpg)
![](/uploads/spec-pics/201306/Direction-of-Front-Operation.jpg)
![](/uploads/spec-pics/201306/Direction-of-Right-Side-Operation.jpg)
![](/uploads/spec-pics/201306/Door-Drilling-Layout.jpg)
