For a Complete Assembly, Please Select:
Switch + Lugs
![]() |
Switch Amp Rating |
No. of Poles |
SCCR | Max Horsepower Rating |
Part Number |
||||
3-Phase | DC* | ||||||||
220/ 240Vac |
440/ 480Vac |
600 Vac |
125 Vdc |
250 Vdc |
|||||
600A | 3 | 200kA | 240 | 400 | 350 | 20 | 50 | RD600-3 | |
600A | 4 | 200kA | 240 | 400 | 350 | 20 | 50 | RD600-4 | |
800A | 3 | 100kA | 200 | 500 | 500 | - | - | RD800-3 | |
800A | 4 | 100kA | 200 | 500 | 500 | - | - | RD800-4 | |
1000A | 3 | 100kA | 200 | 500 | 500 | - | - | RD1000-3 | |
1000A | 4 | 100kA | 200 | 500 | 500 | - | - | RD1000-4 | |
1200A | 3 | 100kA | 200 | 500 | 500 | - | - | RD1200-3 | |
1200A | 4 | 100kA | 200 | 500 | 500 | - | - | RD1200-4 | |
* DC Ratings use two poles in series. |
![]() |
Terminal Lug Kit | ||||||
Switch Amp Rating |
No. of Poles |
Lugs Per Kit |
Lugs Required per Pole |
Wire Range |
Wire Type |
Part Number |
|
600 | 3 | 3 | 1 | (2) #2-600MCM | 75°C Cu/Al | LUG5-3 | |
600 | 4 | 4 | 1 | (2) #2-600MCM | 75°C Cu/Al | LUG5-4 | |
800-1200 | 3 | 6 | 2 | (4) #2-600MCM | 75°C Cu/Al | LUG6-6 | |
800-1200 | 4 | 8 | 2 | (4) #2-600MCM | 75°C Cu/Al | LUG6-8 |
Handle
![]() |
Direct Mount Handle - mounts directly to switch, no shaft required | |||||
For Switch Part Number | Color |
Test Function |
Padlockable |
Part Number |
||
All Switches | Black | N | Y | DIR-04 | ||
OR | ||||||
![]() ![]() OR ![]() ![]() |
External Front Operated Pistol Handles - shaft required | |||||
NEMA Type |
Color |
Test Function |
Padlockable | Defeatable |
Part Number |
|
1, 3R, 4, 4X, 12 | Black | N | Y | Y | H4X-07B(1) | |
1, 3R, 4, 4X, 12 | Red/Yellow | N | Y | Y | H4X-07R(1) | |
1, 3R, 4, 4X, 12 | Black | N | Y | Y | H4X-08B(2) | |
1, 3R, 4, 4X, 12 | Red/Yellow | N | Y | Y | H4X-08R(2) | |
Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles - shaft required | ||||||
NEMA Type | Color | Test Function | Padlockable | Defeatable | Part Number | |
1, 3R, 4, 4X, 12 | Black | N | Y | Y | H4X-07BHD(3) | |
1, 3R, 4, 4X, 12 | Red/Yellow | N | Y | Y | H4X-07RHD(3) | |
1, 3R, 4, 4X, 12 | Black | N | Y | Y | H4X-08BHD(4) | |
1, 3R, 4, 4X, 12 | Red/Yellow | N | Y | Y | H4X-08RHD(4) | |
![]() |
Shafts for Pistol Handles | |||||
Length in (mm) | Mounting Depth (X) in (mm) |
![]() |
Part Number | |||
7.9 (200) | 8.70~13.50 (221~343) | SH6-200 | ||||
12.6 (320) | 8.70~18.23 (221~463) | SH6-320 | ||||
15.7 (400) | 8.70~21.38 (221~543) | SH6-400 | ||||
![]() |
Shaft Guide | |||||
Part Number | ||||||
Required for 15.7” (400mm) long shafts, optional for other lengths | SH-GUIDE2 |
Accessories
![]() |
Auxillary Contacts | |||||
Contact Type |
Number of Contacts |
Continuous Amp Rating |
Voltage Rating |
Max Number of Aux Contacts per Switch |
Part Number |
|
NO + NC | 1 of each | 10.1A | 125-250Vac | 2 | BAC03* | |
NO + NC | 1 of each | 10.1A | 125-250Vac | 2 | BAC04* | |
NO + NC | 1 of each | 1A | 125Vac | 2 | BAC11* | |
NO + NC | 1 of each | 1A | 125Vac | 2 | BAC12* | |
* For one auxiliary contact, install either BAC03 or BAC11. For two auxiliary contacts, install BAC03 + BAC04, or BAC11 + BAC12. |
![]() |
Terminal Shrouds* - includes terminal shroud for lineside or loadside | |||
Switch Amp Rating |
Number of Poles |
Location on Switch |
Part Number |
|
600A | 3 | Lineside or Loadside | TSH6-3TB | |
600A | 4 | Lineside or Loadside | TSH6-4TB | |
800-1200A | 3 | Lineside or Loadside | TSH7-3TB | |
800-1200A | 4 | Lineside or Loadside | TSH7-4TB | |
* Shroud for lineside included with switch. |

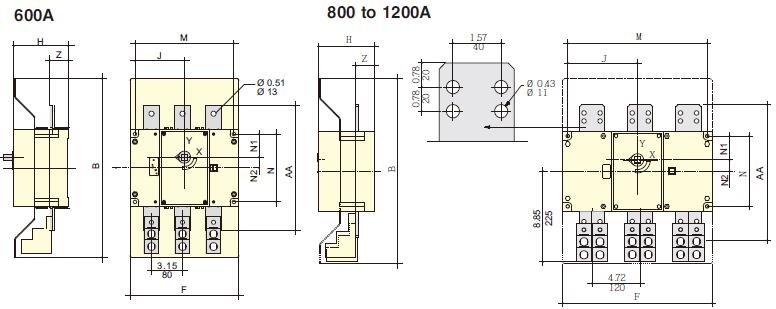

Dimensions
![](/uploads/spec-pics/201401/RD600-RD800-RD1000-RD1200-3-4-Dimensions.jpg)
Switch Rating (A) | Terminal Shrouds B |
Switch Body |
Switch Mounting |
Connection | |||||||||
F 3p. | F 4p. | H | J 3p. | J 4p. | M 3p. | M 4p. | N | N1 | N2 | AA | Z | ||
600 |
18.12 (460) |
11 (280) |
14.17 (360) |
5.5 (140) |
5 (127.5) |
6.59 (167.5) |
10.03 (255) |
13.19 (335) |
6.88 (175) |
2.34 (59.5) |
1.10 (28) |
12.6 (320) |
1.85 (47) |
800 |
18.12 (460) |
14.64 (372) |
19.37 (492) |
5.5 (140) |
6.83 (173.5) |
9.19 (233.5) |
13.66 (347) |
18.38 (467) |
6.88 (175) |
2.34 (59.5) |
1.10 (28) |
13 (330) |
1.85 (47) |
1000 |
18.12 (460) |
14.64 (372) |
19.37 (492) |
5.5 (140) |
6.83 (173.5) |
9.19 (233.5) |
13.66 (347) |
18.38 (467) |
6.88 (175) |
2.34 (59.5) |
1.10 (28) |
13 (330) |
1.85 (47) |
1200 |
18.12 (460) |
14.64 (372) | 19.37 (492) |
5.5 (140) |
6.83 (173.5) | 9.19 (233.5) | 13.66 (347) | 18.38 (467) |
6.88 (175) |
2.34 (59.5) |
1.10 (28) | 13 (330) |
1.85 (47) |

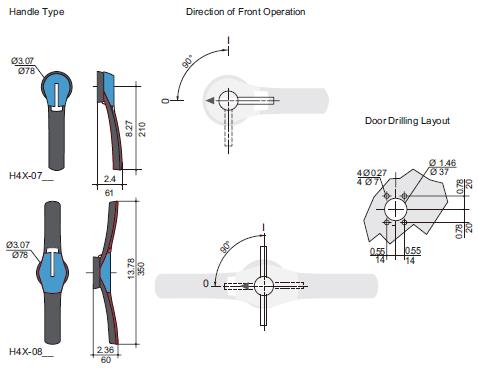

External Front Pistol Handles
![](/uploads/spec-pics/201401/External-Front-Pistol-Handles.jpg)
Direct Mount Handle
![](/uploads/spec-pics/201401/Direct-Mount-Handle.jpg)
Terminal Lugs
![](/uploads/spec-pics/201401/Terminal-Lugs.jpg)
