For a Complete Assembly, Please Select:

Switch

	Switch Amp Rating	No. of Poles	SCCR	Max Horsepower Rating					Part Number
				1-Phase 220/ 240Vac	3-Phase
					220/ 240Vac	440/ 480Vac	600 Vac
	100	3	200kA	10	30	75	100		RD100-3-SCCR
	200	3	200kA	10	75	150	200		RD200-3
	200	4	200kA	10	75	150	200		RD200-4
	400	3	200kA	-	125	250	350		RD400-3
	400	4	200kA	-	125	250	350		RD400-4
	Terminal Lug Kit
	Switch Amp Rating	No. of Poles	Lugs Per Kit	Wire Range				Wire Type	Part Number
	100-200	2	2	#6-300MCM				75°C Cu/Al	LUG1-2
	100-200	3	3	#6-300MCM				75°C Cu/Al	LUG1-3
	100-200	4	4	#6-300MCM				75°C Cu/Al	LUG1-4
	400	2	2	#4-600MCM or Dual 1/0-250MCM				75°C Cu/Al	LUG2-2
	400	3	3	#4-600MCM or Dual 1/0-250MCM				75°C Cu/Al	LUG2-3
	400	4	4	#4-600MCM or Dual 1/0-250MCM				75°C Cu/Al	LUG2-4
	400	2	2	(2) #6-350MCM				75°C Cu/Al	LUG3-2
	400	3	3	(2) #6-350MCM				75°C Cu/Al	LUG3-3
	400	4	4	(2) #6-350MCM				75°C Cu/Al	LUG3-4

HANDLE

	Direct Mount Handle - mounts directly to switch, no shaft required
	For Switch Part Number		Color		Test Function	Padlockable		Part Number
	All Switches		Black		N	Y		DIR-03
OR
or	External Front Operated Pistol Handles - shaft required
	NEMA Type		Color		Test Function	Padlockable	Defeatable	Part Number
	1, 3R, 12		Black		N	Y	Y	H12-03B
	1, 3R, 12		Red/Yellow		N	Y	Y	H12-03R
	1, 3R, 4, 4X, 12		Black		N	Y	Y	H4X-06B
	1, 3R, 4, 4X, 12		Red/Yellow		N	Y	Y	H4X-06R
	Metallic Hasp (Heavy Duty) External Front Operated Pistol Handles - shaft required
	NEMA Type		Color		Test Function	Padlockable	Defeatable	Part Number
	1, 3R, 4, 4X, 12		Black		N	Y	Y	H4X-06BHD
	1, 3R, 4, 4X, 12		Red/Yellow		N	Y	Y	H4X-06RHD
	Shafts for Selector Handles
	Length in(mm)	Mounting Depth (X) in(mm)						Part Number
	7.9 (200)	3.50~9.50 (89~241)						SH4-200
	12.6 (320)	3.50~14.9 (89~378)						SH4-320
	15.7 (400)	5.31~18.31(135~465)						SH4-400
	Shaft Guide
								Part Number
	Required for 15.7” (400mm) long shafts, optional for other lengths							SH-GUIDE2

Accessories

	Auxillary Contacts
	Contact Type	Number of Contacts	Continuous Amp Rating	Voltage Rating	Max Number of Aux Contacts per Switch	Part Number
	NO + NC	1 of each	10.1A	125-250Vac	2	BAC03*
	NO + NC	1 of each	10.1A	125-250Vac	2	BAC04*
	NO + NC	1 of each	1A	125Vac	2	BAC11*
	NO + NC	1 of each	1A	125Vac	2	BAC12*
	*  For one auxiliary contact, install either BAC03 or BAC11. For two auxiliary contacts, install BAC03 + BAC04, or BAC11 + BAC12.
	Terminal Shrouds - includes terminal shroud for lineside or loadside
	Switch Amp Rating	Number of Poles	Location on Switch			Part Number
	100-200A	3	Lineside			TSH4-3T
	100-200A	3	Loadside			TSH4-3B
	100-200A	4	Lineside or Loadside			TSH4-4TB
	400A	3	Lineside			TSH5-3T
	400A	3	Loadside			TSH5-3B
	400A	4	Lineside or Loadside			TSH5-4TB

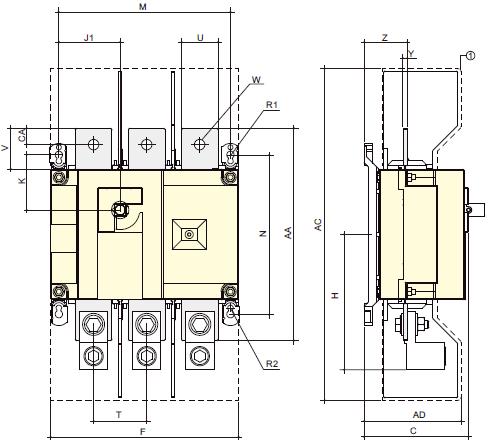

Dimensions - in (mm)

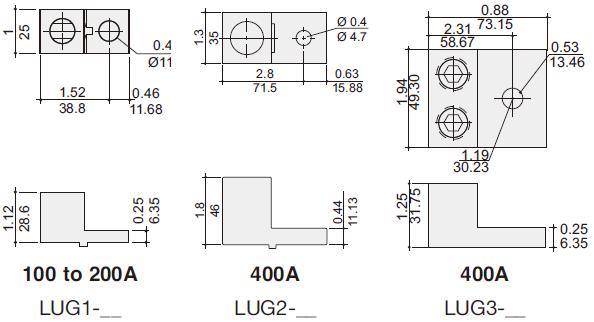

Terminal Lugs

Switch Rating (A)	Overall Dimen. C	Terminal Shrouds		Switch Body						Switch Mounting					Connection
		AC	AD	F 3p.	F 4p.	H	J1 3p.	J1 4p.	K	M 3p.	M 4p.	N	R1	R2	T	U	V	W	Y	Z	AA	AC
100	3.72 (94.6)	10.1 (256)	3.05 (77.5)	7.09 (180)	9.06 (230)	4.22 (107)	2.17 (55)	4.13 (105)	1.8 (45.6)	6.3 (160)	8.27 (210)	5.31 (135)	0.35 (9)	0.27 (7)	1.97 (50)	0.98 (25)	1.18 (30)	0.43 (11)	0.14 (3.5)	1.35 (34.4)	6.3 (160)	0.6 (15)
200	3.72 (94.6)	10.1 (256)	3.05 (77.5)	7.09 (180)	9.06 (230)	4.22 (107)	2.17 (55)	4.13 (105)	1.8 (45.6)	6.3 (160)	8.27 (210)	5.31 (135)	0.35 (9)	0.27 (7)	1.97 (50)	0.98 (25)	1.18 (30)	0.43 (11)	0.14 (3.5)	1.35 (34.4)	6.3 (160)	0.6 (15)
400	4.92 (128)	16 (406)	4.15 (115)	9.05 (230)	11.4 (290)	6.53 (166)	2.95 (75)	5.31 (135)	2.65 (67.5)	8.26 (210)	10.6 (270)	7.67 (195)	0.35 (9)	0.27 (7)	2.56 (65)	1.77 (45)	1.97 (50)	0.43 (13)	0.2 (5)	2.08 (53)	10.2 (260)	0.8 (20)

Direct Mount Handle

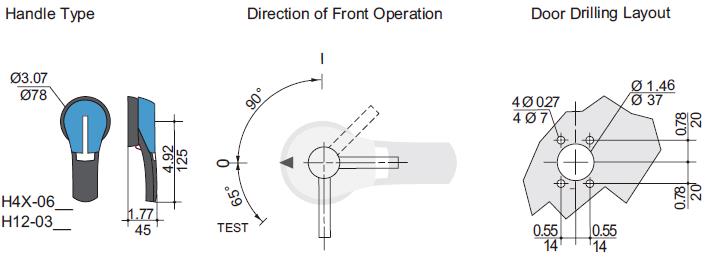

External Front Handle
