Description:
Quick connect terminal block.
Quick Connects: 0.250" X .031".
Center Spacing: 0.437" (11.10).
Screw Size: #8-32.
Poles: 1
Circuits Per Foot: 24
Wire Range: AWG #8-22 CU.
Ratings:
Volts: 600V
Amps: 40A
Agency Information:
CE, UL E62622; CSA LR15364.
Flammability Rating: UL 94V2.
Torque Rating: 18 in-lb max.
Mounting Options: Base mount, stackable. End Piece (Cat. No. BQE) is required for mounting. Mounting screws recommended every 8 circuits.
Catalog Number Color
BNQ21-WH White

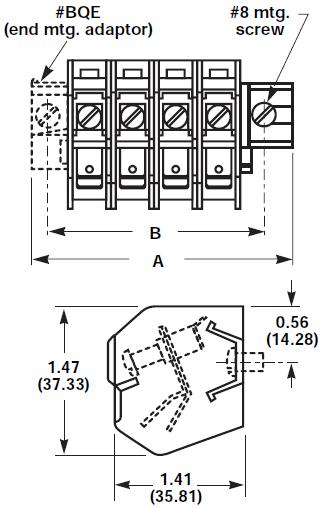

Dimensions - in (mm)
![](/uploads/spec-pics/201306/BNQ21-WH-Quick-connect-Dimensions.jpg)
