Description:
Quick-connect terminal block.
Rating: 40A, 600V
Center Spacing: 0.390" (9.91mm)
Number of Poles: 3
Circuits Per Foot: 28
Wire Range: AWG #8-22 Cu
Screw Size: #8-32
Quick Connects: 0.250” x 0.031”
Mounting Options: C-rail
Marking Tape: MT12-1-2
Torque Rating: 18 lb-in
Operating Temperature: 105°C.
Catalog Number Color
NTQ23-WH White

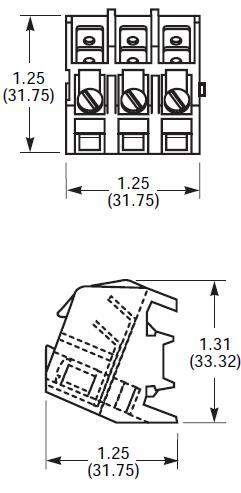

Dimensions - in (mm)
![](/uploads/spec-pics/201306/NTQ23-WH-Quick-connect-Dimensions.jpg)
